TradeMaster devices are designed with features to make installation faster, easier, and visually appealing.

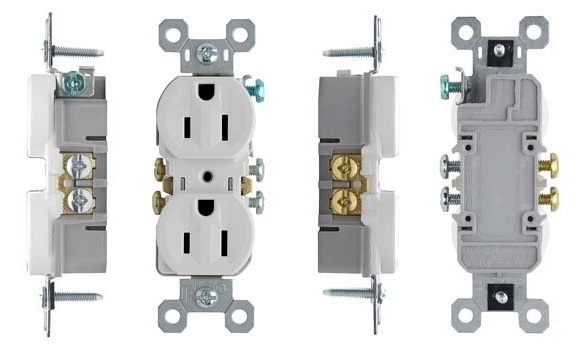

3232 Series TR Features
- High-impact resistant thermoplastic construction
- Side wire accepts #12-#14 AWG solid wire. Pushwire accepts #14 AWG solid only.
- "TR" markings on strap per UL Tamper-Resistant requirements.
- Patented internal shutter system lets plugs in, but keeps keys and other objects out with automatic shutters that block access.
- Traditional contoured face.
- Safer and more effective than traditional plastic outlet caps or protection plates.
"WR" Weather-Resistant versions available
Tamper Resistant
| Catalog Numb. | Amperage | Voltage | Color | Nema Config. |
| 3232TRI | 15 | 125 | Ivory | 5-15R |
| 3232TRW | 15 | 125 | White | 5-15R |
| 3232TR | 15 | 125 | Brown | 5-15R |
| 3232TRBK | 15 | 125 | Black | 5-15R |
| 3232TRLA | 15 | 125 | Light Almond | 5-15R |
Tamper and Weather Resistant
| Catalog Numb. | Amperage | Voltage | Color | Nema Config. |
| 3232TRWRI | 15 | 125 | Ivory | 5-15R |
| 3232TRWRW | 15 | 125 | White | 5-15R |
| 3232TRWR | 15 | 125 | Brown | 5-15R |
| 3232TRWRGRY | 15 | 125 | Gray | 5-15R |
| 3232TRLA | 15 | 125 | Light Almond | 5-15R |
