Axcent series luminaires

The Lumark Axcent LED wall mount luminaire provides a flush-mounted, architectural design with high performing, energy-efficient illumination resulting in up to 95% energy and maintenance savings over traditional sources. The die-cast aluminum construction along with stainless steel hardware, gasketed housing, and sealed optical compartment make the Axcent impervious to contaminants. The Axcent replaces 70W to 450W metal halide equivalents making it ideal for pathway illumination, building entrances, vehicle ramps, schools, tunnels, stairways, loading docks and floodlighting applications.

The small housing AXCS models are available in 14, 21, 27, 44, or 52 watt.

The large housing AXCL models are available in 56, 72, 102, 123 watt.



Versatile Mounting

Steel wedge mounting plate fits directly to 4" standard j-box or directly to wall with the "Hook- N-Lock" mechanism for quick installation. Secure with two captive, corrosion resistant, stainless steel set screws, which are concealed but accessible from bottom of fixture. Optional floodlight kits available in slipfitter, knuckle and trunnion mount configurations. Optional pole mount configuration provides a quick-mount solution to round and square poles. The easy installation arm accommodates multiple drill patterns ranging from 1-1/2" to 4-7/8".

Emergency Egress

Optional integral cold weather battery emergency egress includes emergency operation test switch, an AC-ON indicator light and a premium, maintenance-free battery pack. The separate emergency lighting LEDs are wired to provided redundant emergency lighting. Listed to UL Standard 924, Emergency Lighting. (Ambient operating temperature -20°C to 25°C for AXCL6 through AXCL10. Ambient operating temperature -20°C to 30°C on AXCS4 models. Ambient operating temperature -20°C to 40°C on AXCS1 through AXCS3 models. In AXCS1, AXCS2, AXCS3, and AXCS4 models, CBP cannot be used with any sensor option (PC, MSP, LWR). Uses deep back housing for AXCS1, AXCLS2, AXCS3, and AXCS4 models.)

Model Wattage Lumens (4000K, Full Cutoff)
AXCS1A 12 1,806
AXCS2A 21 2,561
AXCS3A 27 3,537
AXCS4A 44 5,520
AXCS5A 52 6,300
AXCL6A 56 7,594
AXCL8A 72 9,696
AXCL10A 102 13,283
AXCL12A 123 16,823



LED Color temperature options:

W = 3000K
blank = 4000K (standard)
C = 5000K,

Available Finishes:

blank = Carbon Bronze (standard)
WT = Summit White
BK = Black
AP = Grey
GM = Graphite Metallics
DP = Dark Platinum

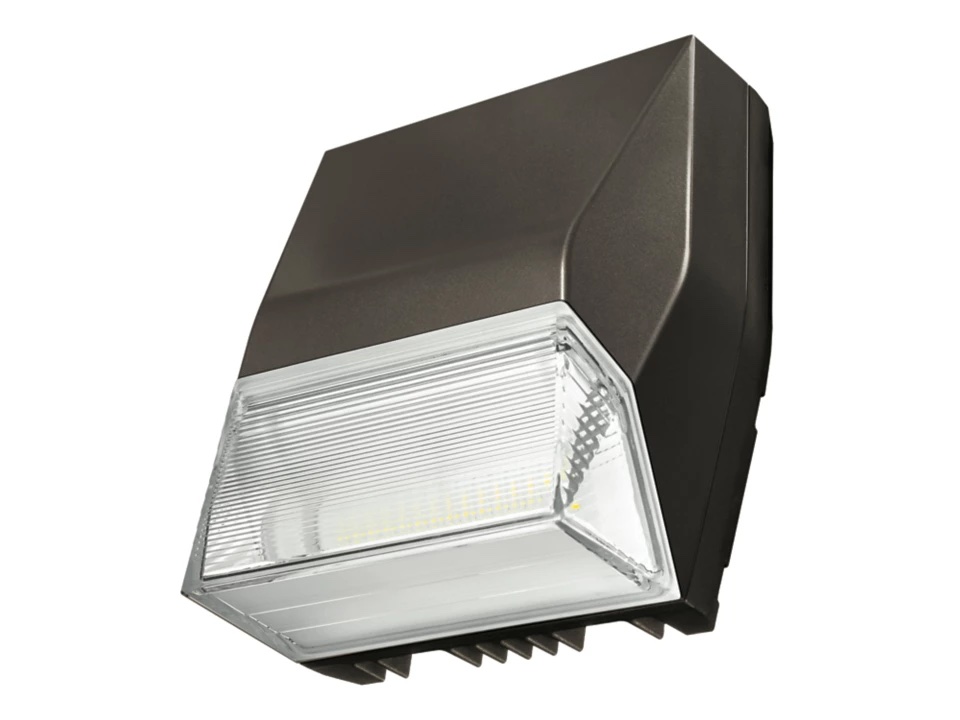

Axcent with refractive lens option:

Axcent with refractive lens

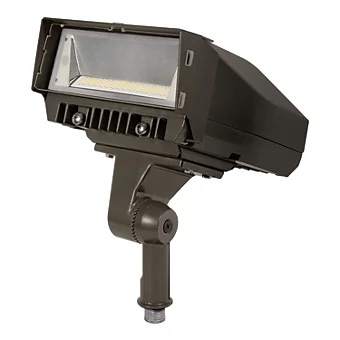

Axcent with ½" knuckle floodlight mount option:

Axcent with knuckle mount

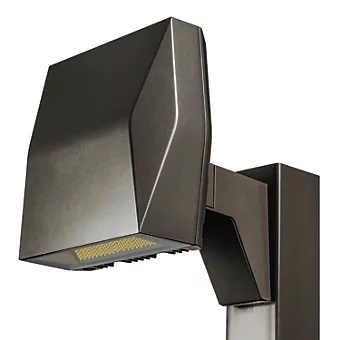

Axcent with pole mount arm:

Axcent with pole mount arm
