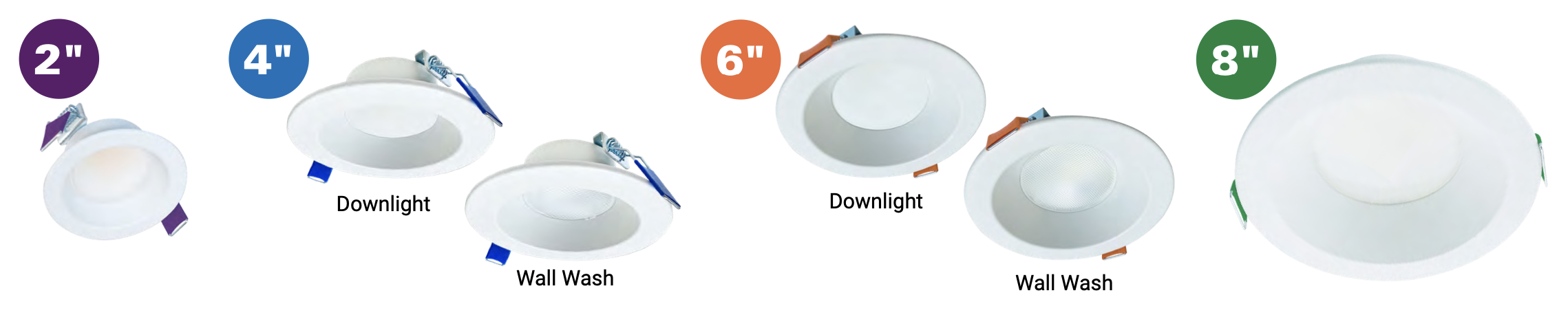

The HALO LCR Series comes in sizes 2", 4", 6" and 8" wall wash and downlights. This high-powered LED module installs without the use of a recessed housing, reducing time and expense on remodel or new construction. The downlight has a wide distribution pattern ideal for general area illumination and the wall wash illuminates a vertical surface with uniform brightness. The LCR series comes with dual dimming as standard and is designed for residential, mixed-use, and commercial spaces. The LCR has ultimate flexibility with selectable color temperature and lumens. During installation select the perfect color temperature for your space with 6 color temperatures between warm (2700K) to daylight (6500K). Depending on your ceiling height or desired light level choose from several lumen options. The LCR Series features an emergency battery option and designer trims in smooth or baffle.
Features
- Round 2”, 4”, 6” & 8” sizes available; Canless installation with remote driver / junction box, no housing required
- 6-color Field-SeleCCTable: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
- Brightness (Lumens): Up to 8000lm ( 8”), Up to 3000lm ( 6”) , Up to 1200lm (4”), 800lm ( 2”)
- Dimming (up to 2100 Lumens): Dual Dimming to 5% (0-10V and phase cut LE/TE) and universal voltage 120-277V
- Dimming (above 2100 Lumens): 0-10V Dimming to 5% and universal voltage 120-277V
- Integrated Wall Washers with rotating lenses are available in sizes 4" & 6"
- Emergency Battery pack available 4”, 6”, & 8” sizes
- Decorative smooth and baffle trim overlays
- AIR-TITE, wet location-listed, IC-rated, and ENERGY STAR® certified
- 50,000 hrs of maintenance-free operation
- 5-year warranty
| Catalog Number | Size | Lumens | Beam | Dimming | Emergency Battery |
| LCR208RD9FSE020 | 2" | 800 | Downlight | Dual | No |
| LCR408RD9FSE040 | 4" | 800 | Downlight | Dual | Yes |
| LCR408WW9FSE020 | 4" | 800 | Wall Wash | Dual | No |
| LCR408RD9FSE020 | 4" | 800 | Downlight | Dual | No |
| LCR412RD9FSE040 | 4" | 1200 | Downlight | Dual | Yes |
| LCR412WW9FSE020 | 4" | 1200 | Wall Wash | Dual | No |
| LCR412RD9FSE020 | 4" | 1200 | Downlight | Dual | No |
| LCR615RD9FSE040 | 6" | 1500 | Downlight | Dual | Yes |
| LCR615WW9FSE020 | 6" | 1500 | Wall Wash | Dual | No |
| LCR615RD9FSE020 | 6" | 1500 | Downlight | Dual | No |
| LCR621RD9FSE040 | 6" | 2100 | Downlight | Dual | Yes |
| LCR621WW9FSE020 | 6" | 2100 | Wall Wash | Dual | No |
| LCR621RD9FSE020 | 6" | 2100 | Downlight | Dual | No |
| LCR630RD9FSE040 | 6" | 3000 | Downlight | 0-10V | Yes |
| LCR630WW9FSE010 | 6" | 3000 | Wall Wash | 0-10V | No |
| LCR630RD9FSE010 | 6" | 3000 | Downlight | 0-10V | No |
| LCR810RD9FSE040 | 8" | 1000 | Downlight | Dual | Yes |
| LCR810RD9FSE020 | 8" | 1000 | Downlight | Dual | No |
| LCR830RD9FSE040 | 8" | 3000 | Downlight | 0-10V | Yes |
| LCR830RD9FSE010 | 8" | 3000 | Downlight | 0-10V | No |
| LCR850RD9FSE040 | 8" | 3000 | Downlight | 0-10V | Yes |
| LCR850RD9FSE010 | 8" | 5000 | Downlight | 0-10V | No |
| LCR850RD9FSE040 | 8" | 5000 | Downlight | 0-10V | Yes |
| LCR880RD9FSE010 | 8" | 8000 | Downlight | 0-10V | No |
