Topaz lighting LHB series LED linear high bay fixtures are an amazing value for general purpose commercial and industrial lighting. Available in 6 sizes with static CCT (4000K or 5000K) and 2 sizes that feature selectable CCT and lumen output.

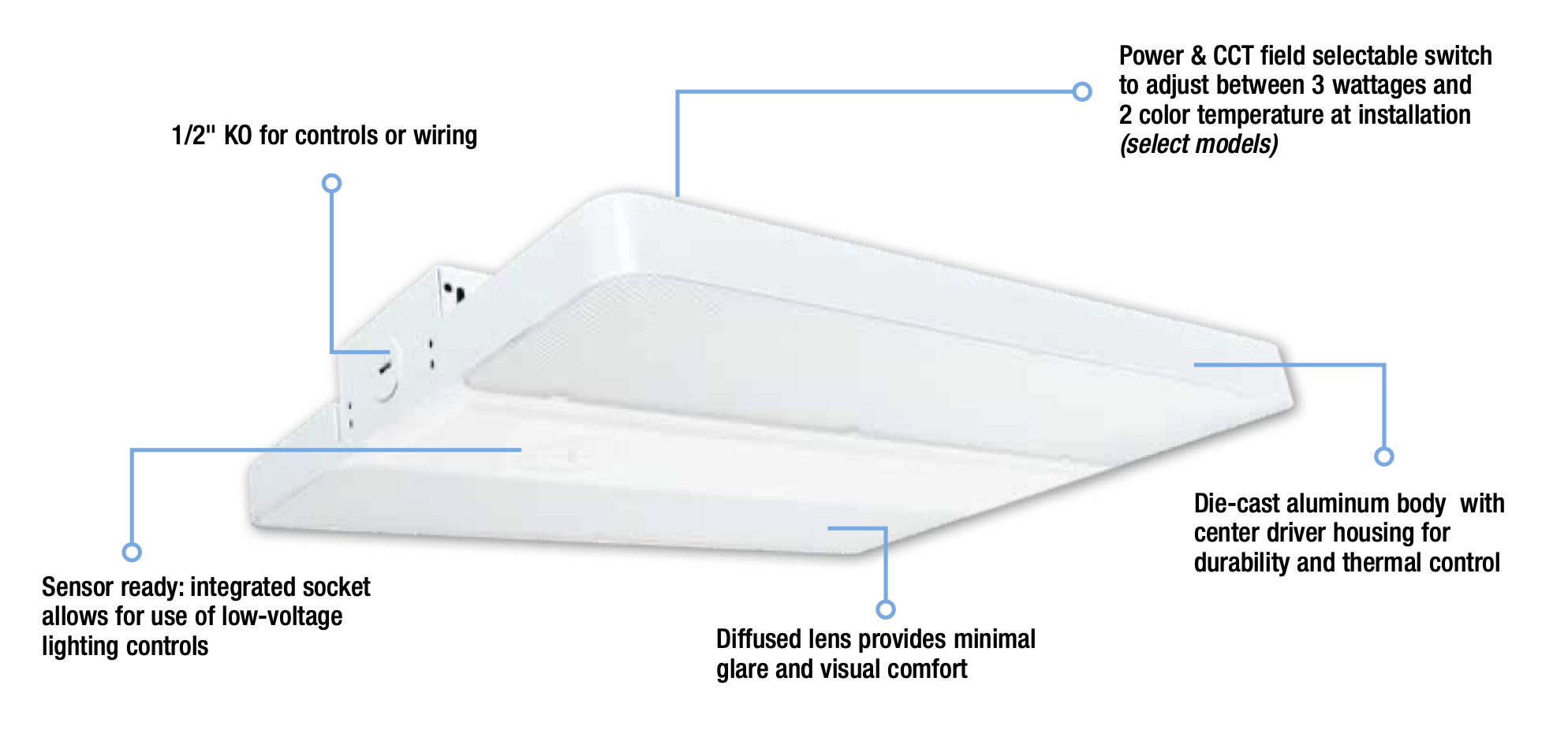

FEATURES:
- Compact design makes handling and installation easier
- Die-cast aluminum body is durable and offers excellent thermal control
- Integrated socket for lighting controls (optional)
- Diffused lens for minimal glare and improved visual comfort
- Includes mounting hardware (V-hook & 36" hanger chain)
Static CCT Models
| Catalog Number | Description | Lumens | Watts | Color Temp | Voltage |
| LHB-18L-W-xxK-U | 14" LED High Bay | 18,000 | 120 | 40K/50K | 120-277V |
| LHB-24L-W-xxK-U | 18" LED High Bay | 24,000 | 160 | 40K/50K | 120-277V |
| LHB-30L-W-xxK-U | 18.1" LED High Bay | 30,000 | 200 | 40K/50K | 120-277V |
| LHB-36L-W-xxK-U | 23" LED High Bay | 36,000 | 240 | 40K/50K | 120-277V |
| LHB-48L-W-xxK-U | 23" LED High Bay | 48,000 | 320 | 40K/50K | 120-277V |
| LHB-63L-W-xxK-U | 46" LED High Bay | 63,000 | 420 | 40K/50K | 120-277V |
Power and CCT Selectable Models
| Catalog Number | Description | Lumens | Watts | Color Temp | Voltage |
| LHB-15L-W-PCS-U | 14.2" LED High Bay | 15,000 | 60/80/100 | 35K/40K/50K | 120-277V |
| LHB-30L-W-PCS-U | 18.1" LED High Bay | 30,000 | 120/160/200 | 35K/40K/50K | 120-277V |
Download Topaz LHB Spec Sheet
