LED Linear Strip luminaires are one of Topaz’s most adaptable products, finding their way into healthcare facilities, offices and retail applications to name just a few. Adding to their versatility, our CCT Selectable models allow the choice of 3 color temperatures to be selected upon installation, matching a variety of environments or applications. Motion sensor models come pre-programmed and will be suitable for most environments but can be adjusted to cover various scenarios. Emergency battery backup models are also available and provide up to 90 minutes of illumination in the event of a power outage.
Features & Benefits

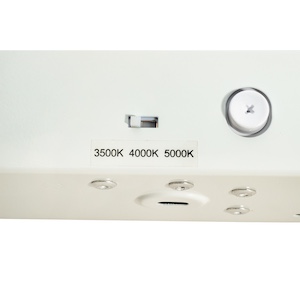

- 3 CCT Selectable switch: 3500K, 4000K, 5000K
- Press to release buttons allow for quick tool-less access to the wiring compartment
- Models include (2) ½" knockouts on each side panel
- Designed for surface mount with the included J-box cover plate
- End-to-end mounting and suspension mount kits sold separately
- Suitable for mounting up to 15'
- Emergency battery backup and motion sensor models available
Specifications
| Catalog Number | Length | Lumens | Watts | Feature | Voltage |
| F-L2/20W/CTS/D-87 | 24" | 2,800 | 20 | - | 120-277V |
| F-L4/40W/CTS/D-87 | 48" | 5,600 | 40 | - | 120-277V |
| F-L4/40W/CTS/EM-87 | 48" | 5,600 | 40 | Emergency Back-up |
120-277V |
| F-L4/40W/CTS/MS-87 | 48" | 5/600 | 40 | Motion Sensor |
120-277V |
| F-L8/64W/CTS/D-87 | 96" | 8,960 | 64 | - | 120-277V |
| F-L8/64W/CTS/EM-87 | 96" | 8,960 | 64 | Emergency Back-up |
120-277V |
| F-L8/64W/CTS/MS-87 | 96" | 8,960 | 64 | Motion Sensor |
120-277V |
Download Topaz Linear Strip Spec Sheet:
