Bussmann™ series Ultimate protection Low-Peak Class CC current-limiting, time-delay fuses. Time-delay – 12 seconds (minimum) at 200% of rated current.
Ratings:
- A/C Volts: 600V (all amperages)
- D/C Volts: 300V (½ to 2-8/10A, & 20 to 30A), 150V (3 to 15A)
- Amps: ½-30A
- Interrupt Rating: 200kA VAC RMS Sim., 20kA VDC
Features:
- 200kA interrupting rating complies with NEC® Section 110.9 for today’s large capacity systems.
- Fast short-circuit protection and dual-element, time-delay performance provide ultimate protection.
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses.
- Consistent 2:1 amp rating ratios for all Low-Peak fuses make selective coordination easy.
- Time-delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under fault conditions provides a high degree of current limitation.
- Current-limitation protects downstream components against damaging thermal and magnetic effects of fault currents.
- A superior, all-purpose, space-saving branch circuit fuse that meets most protection requirements up to 30 A.
- Very compact physical size that’s only 13/32” x 1-1/2” (10 x 38mm) with rejction tip.
- Proper sizing can provide “No Damage” Type 2 coordinated protection for NEMA and IEC motor controllers.
- Can be used where either a time-delay or a fast-acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction.
- Superior protection for small horsepower motor circuits.

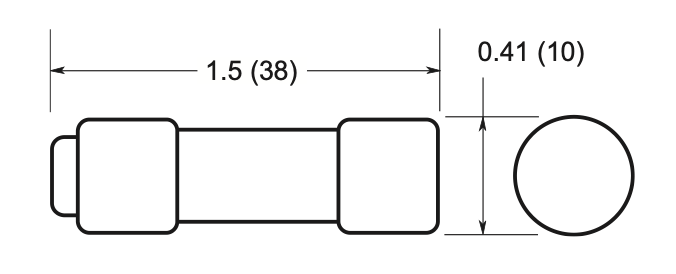

Dimensions:
