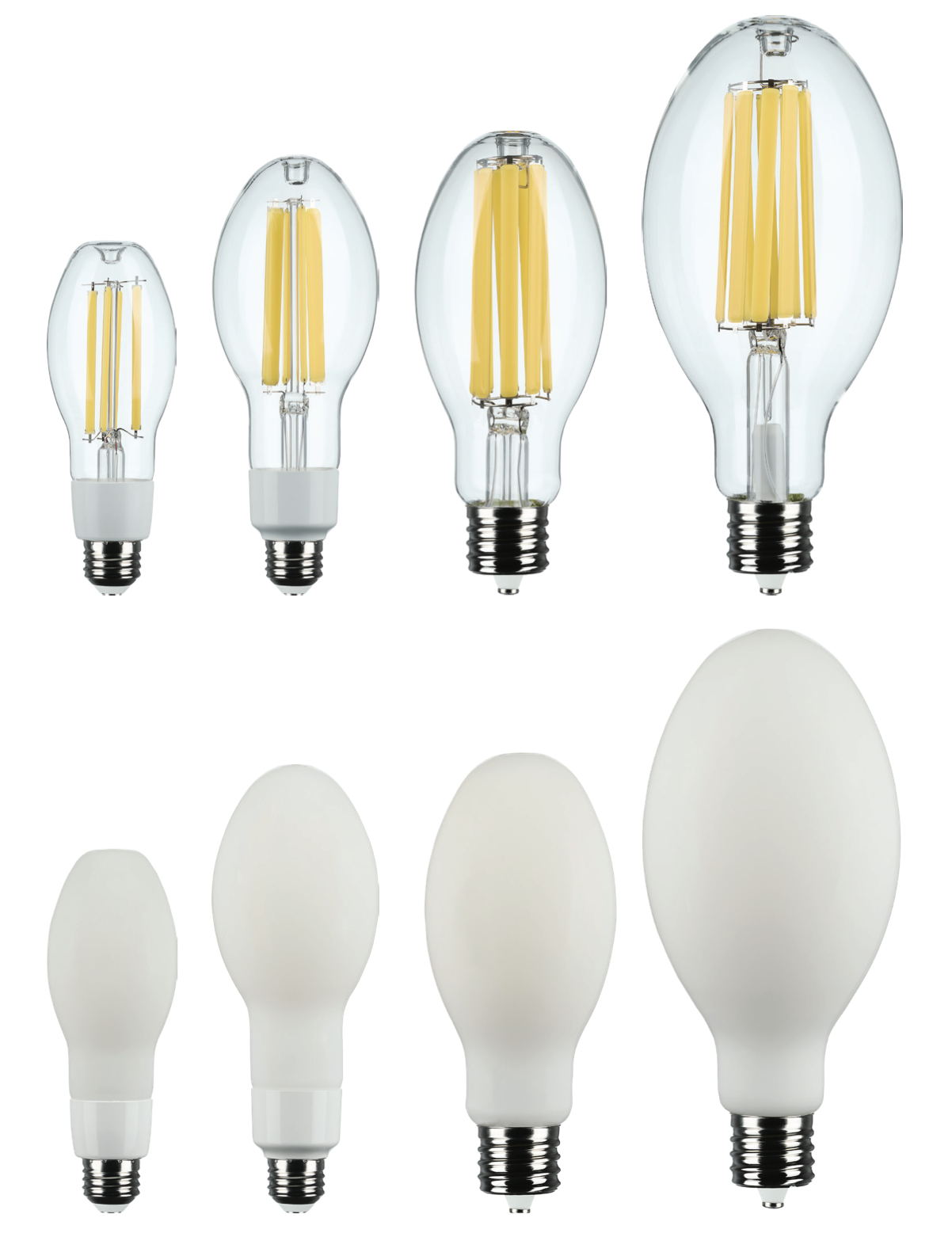

New for 2023 is Satco's line of "filament" LED style HID replacement lamps. These lamps are the closest form factor you can get to the original HID lamps making them ideal for retrofitting into fixtures with limited space. They also have the traditional look of HID lamps making retrofitting more visually appealing when the lamp is visible.
ITEM SPECIFICATIONS
| Cat Number | Shape | Base | Finish | Lumens | Wattage | HID Replacement | CCT |
| S13180 | ED17 | E26 | Clear | 1700 | 13.5 | 50 | 2200K |
| S13181 | ED17 | E26 | Clear | 2000 | 13.5 | 50 | 4000K |
| S13182 | ED17 | E26 | White | 2000 | 15 | 70 | 5000K |
| S13183 | ED23.5 | E26 | Clear | 3400 | 23 | 100 | 2200K |
| S13184 | ED23.5 | E26 | Clear | 4000 | 23 | 100 | 4000K |
| S13185 | ED23.5 | E26 | White | 4000 | 24 | 100 | 5000K |
| S13186 | ED28 | EX39 | Clear | 42000 | 28 | 150 | 2200K |
| S13187 | ED28 | EX39 | Clear | 5000 | 28 | 150 | 4000K |
| S13188 | ED28 | EX39 | White | 5000 | 24 | 150 | 5000K |
| S13189 | ED28 | EX39 | Clear | 6000 | 24 | 150 | 4000K |
| S13190 | ED28 | EX39 | White | 6000 | 40 | 170 | 5000K |
| S13191 | E37 | EX39 | Clear | 7500 | 40 | 200 | 4000K |
| S13192 | ED37 | EX39 | White | 7500 | 45 | 250 | 5000K |
| S13193 | ED37 | EX39 | Clear | 10000 | 56 | 320 | 4000K |
| S13194 | ED37 | EX39 | White | 10000 | 62 | 320 | 5000K |

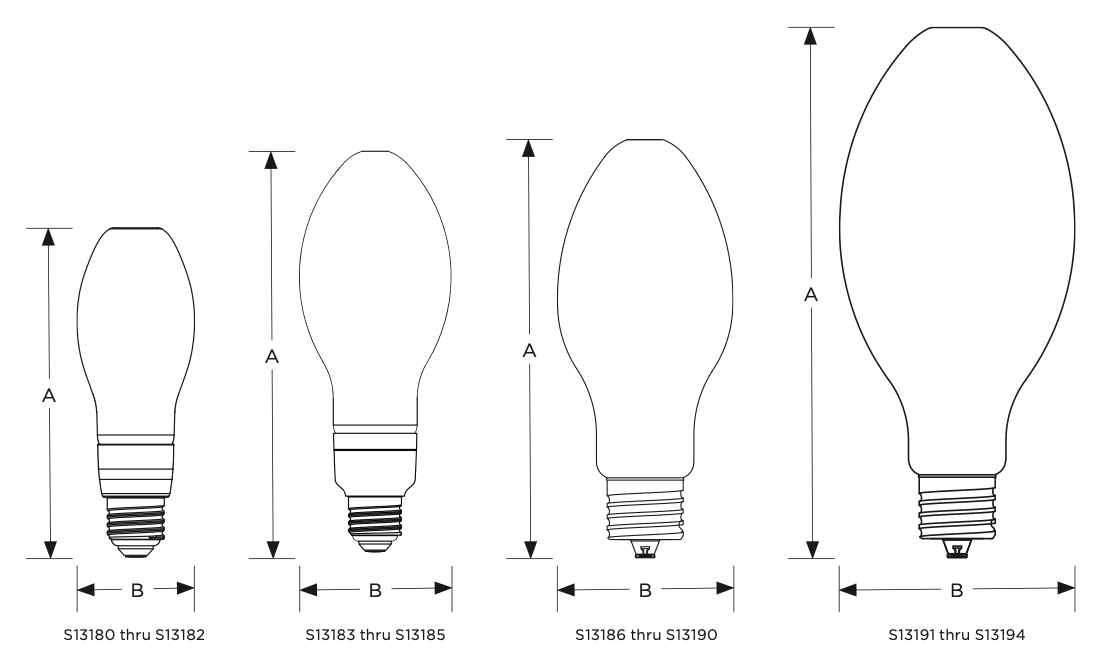

ITEM DIMENSIONS
| Catalog Number | M.O.L. | M.O.D. |
| S13180, 81, 82 | 2.80" | 2.10" |
| S13183, 84, 85 | 7.60" | 2.90" |
| S13186, 87, 88, 89, 90 | 8.40" | 3.50" |
| S13191, 92, 93, 94 | 10.30" | 4.70" |
Range Voltage: 120V-277V
Frequency: 50/60Hz
Dimming: Non-Dimmable
Ballast Bypass: Type B
Location Rating: Wet
IP Rating: IP65
Ambient Operating Temperature: -20°C (-4°F) to +40°C (+104°F)
Rated for Enclosed Fixtures: Yes
Construction: Glass
Functional Life: 50,000 Hours
Warranty: 5 Years
